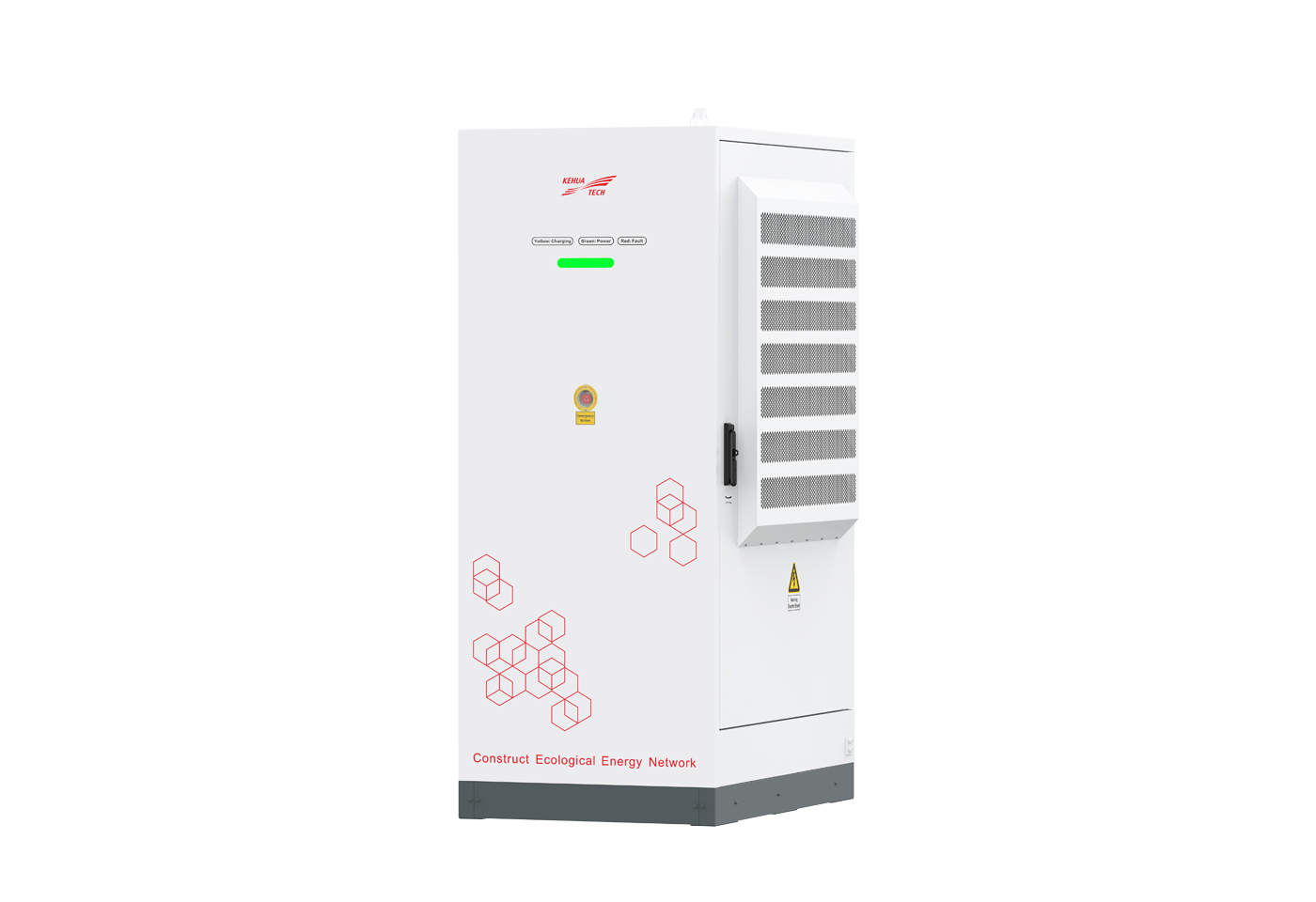

Power Unit
EVD-480SF power unit features with intelligent power optimization and dual-cabinet scalable technology (max 960kW), ensuring high reliability, efficiency, and low noise control. The product offers professional-grade;solution for public , semi-public and fleet charging infrastructures.
-
≥96.5% Peak Efficiency -
40+
Protections -
Power Optimization -

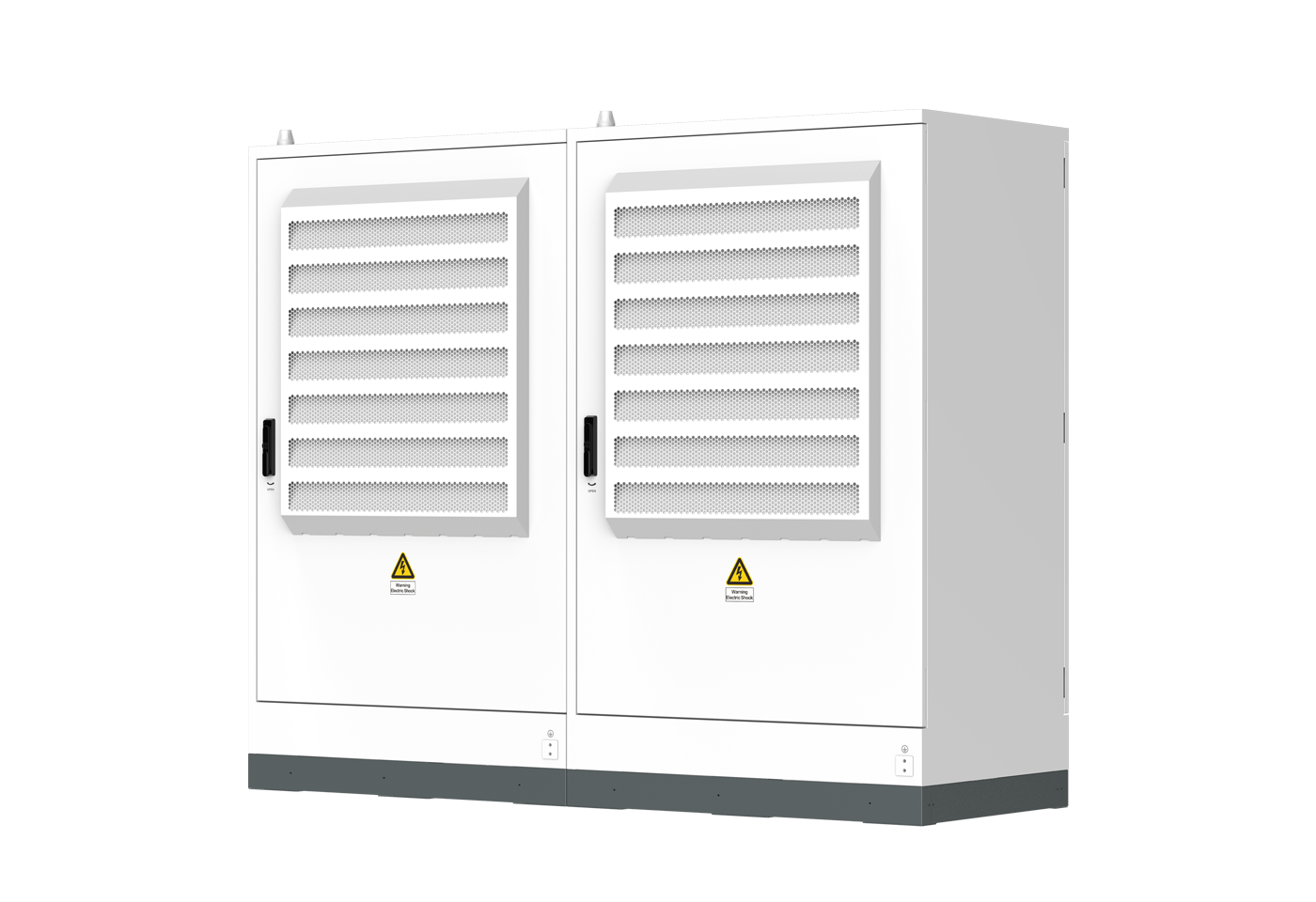

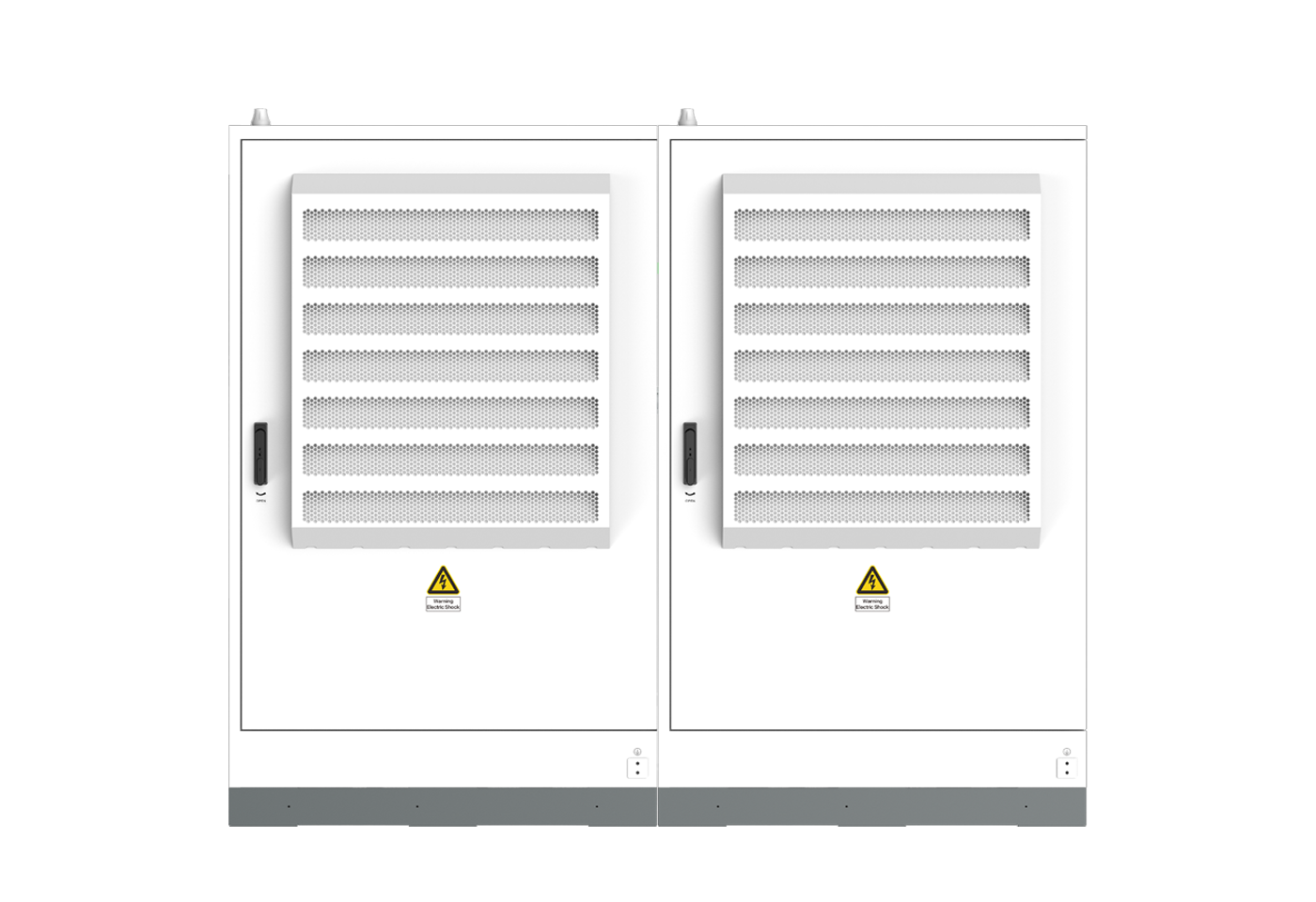

Dual-Cabinet Expansion
EVD-480SF power unit features with intelligent power optimization and dual-cabinet scalable technology (max 960kW), ensuring high reliability, efficiency, and low noise control. The product offers professional-grade;solution for public , semi-public and fleet charging infrastructures.
-
≥96.5% Peak Efficiency
-
40+ Protections
-
Power Optimization
-
Dual-Cabinet Expansion
-
01More Efficient≥ 96.5% peak system efficiency using SiC high-efficiency modules
Innovative air duct design for noise controlling
Compatible with fast and ultra-fast dispensers to suit various EVs
Dual-cabinet expandable to match higher power requirements
-
02More IntelligentSmart efficiency optimization reduces system energy loss
Smart power optimization maximizes operational efficiency
Single-module smart switching with up to 8 output circuits
Balanced charging module runtime extends overall system lifespan
-
03More ReliableAutomotive-grade manufacturing ensures durability in harsh environments
40+ protection and alarm functions for better overall safety
Module in-position detection enhances reliability
Advanced three-phase imbalance control for complex grid conditions
-
04Easy O&MSmart O&M management with online OTA upgrade
Supports Interactive data upload platform and fault logging
Slide-out dust filter reduces maintenance time in 5 minutes
|
Technical parameters |
EVD-480SF |
|
Rated voltage |
400/480Vac (option) |
|
Input voltage range |
323~530Vac |
|
DC output voltage range |
200~1000Vdc |
|
Output power |
480kW |
|
Max.output total current |
0~1600A |
|
Max.inumber of output |
8 |
|
Power distribution |
Intelligent distribution, When dual-cabinet expansion, the power is shared between the two cabinets. |
|
Effciency |
≥96.5% |
|
Noise level |
<65dB (Rated conditions, 25℃, 1m distance) |
|
Operating temperature |
-30~55℃, derating output for temperature over 50℃ |
|
IP level |
IP54 |
|
Size (W×D×H) |
805x1100x1800mm |
|
Flexible dispenser configuration |
Air-cooling dispenser, Liquid-cooling dispenser |
