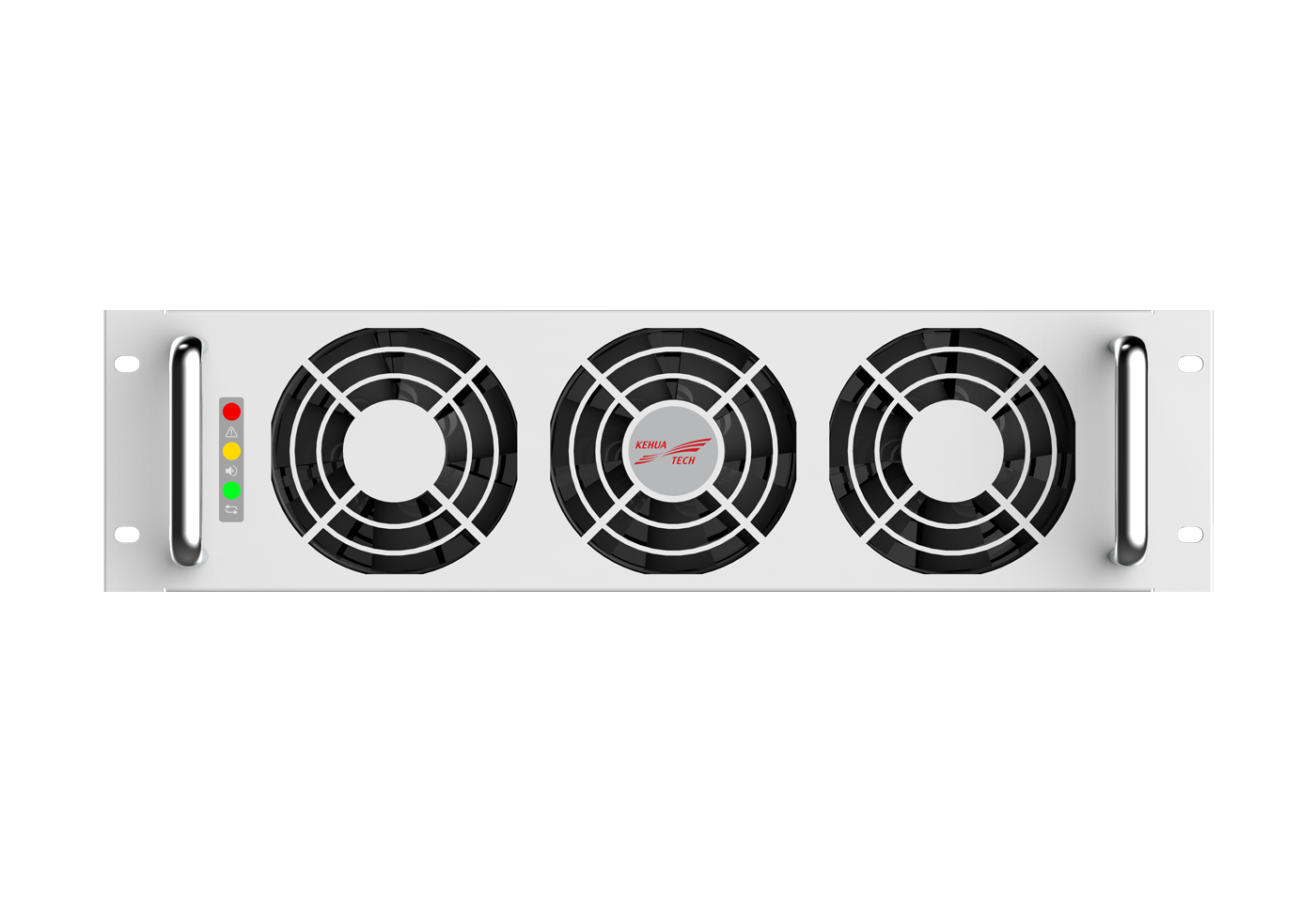

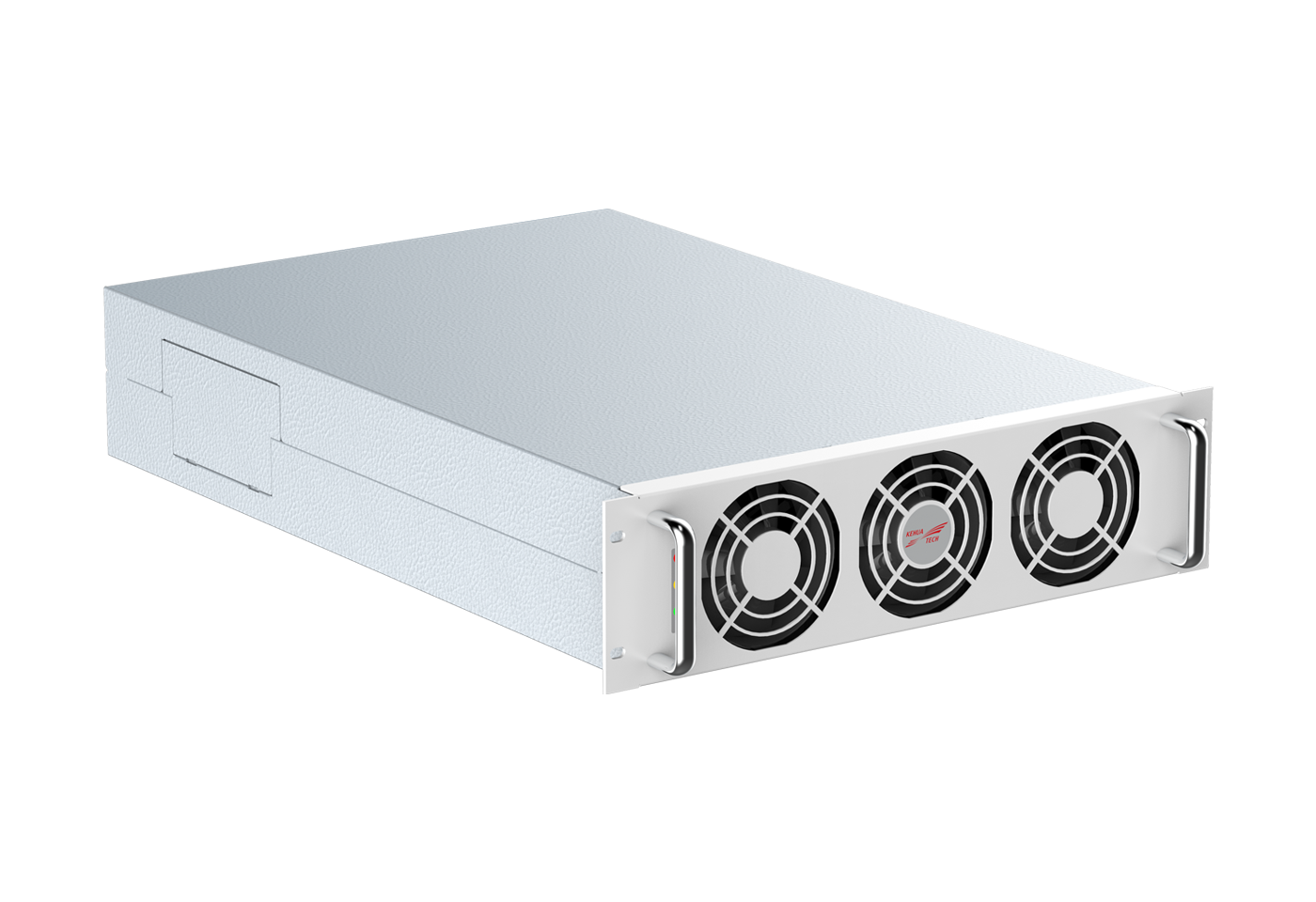

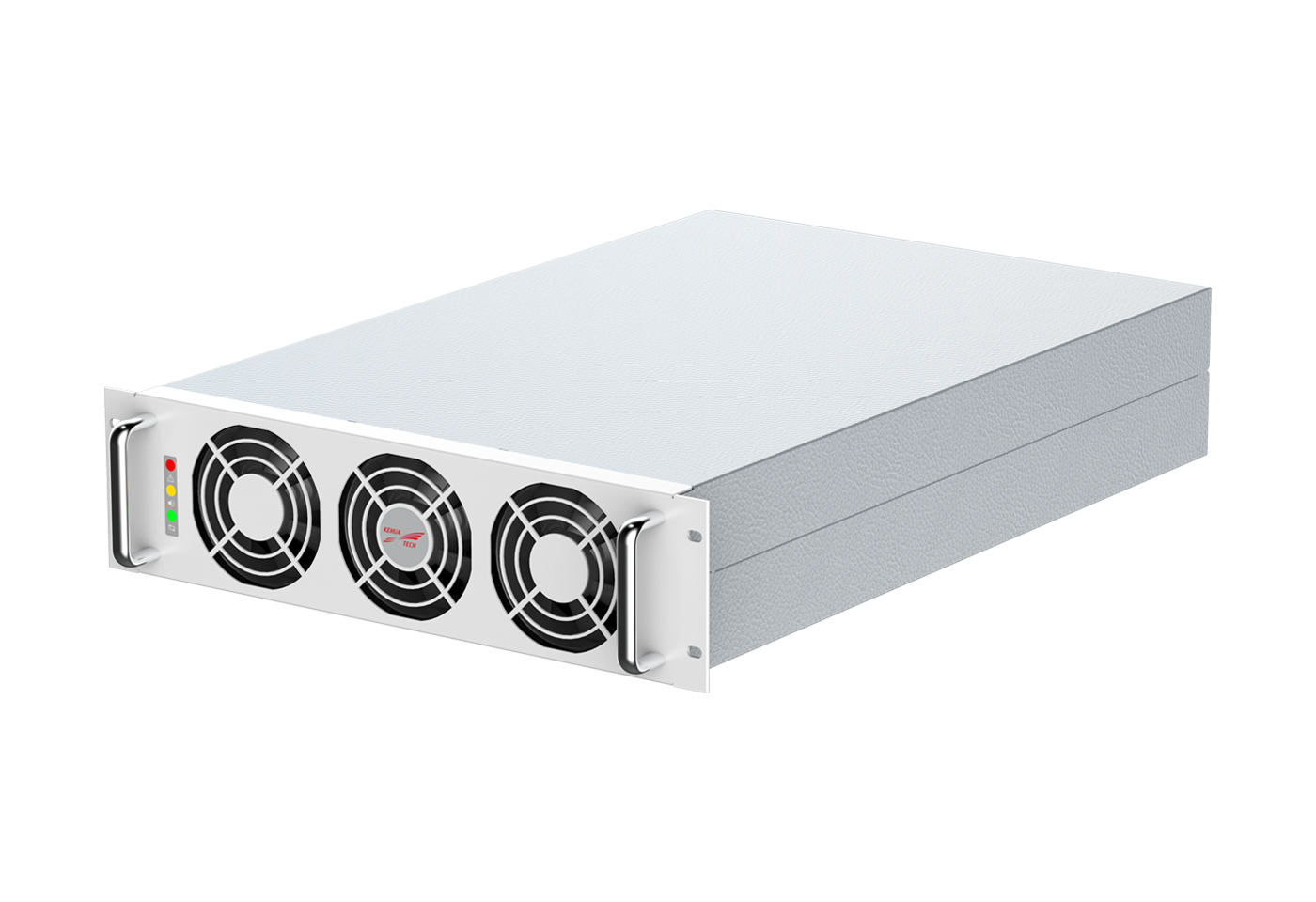

UL Charging Module
The EV3102-030K-HR1(UL) charging module features three-phase power factor correction, LLC soft-switching, and DSP digital control technology, ensuring high efficiency, reliability, and compatibility, and is compliant with EMC Class B and UL standards.
-
EMC
Class B -
≥96% Peak Efficiency -
60+
Protections -
-40~75℃ Temperature
The EV3102-030K-HR1(UL) charging module features three-phase power factor correction, LLC soft-switching, and DSP digital control technology, ensuring high efficiency, reliability, and compatibility, and is compliant with EMC Class B and UL standards.
-
EMC Class B
-
≥96% Peak Efficiency
-
60+ Protections
-
-40~75℃ Temperature
-
01More Efficient≥96% peak efficiency to minimize energy loss
<7.5W standby power consumption minimizes idle power usage
EMC Class B compliance streamlines charger design
-
02More Reliable60+ protection and alarm functions for better overall safety
Module in-position detection enhances reliability
Integrated battery reverse-current and discharge protection circuits
Automotive-grade manufacturing ensures durability in harsh environments
-
03More Compatible150~1000V ultra-wide output range supports a wide range of EVs
300~1000V ultra-wide constant power output boosts profitability
-40~75°C working temperature, ideal for Scandinavia and the Middle East
-
04More IntelligentDSP digital control for faster voltage/current regulation
Four-dimensional fan with intelligent speed control, supporting silent mode
Hot-swappable module design simplifies maintenance
Automatic module address setup for improved O&M efficiency
-

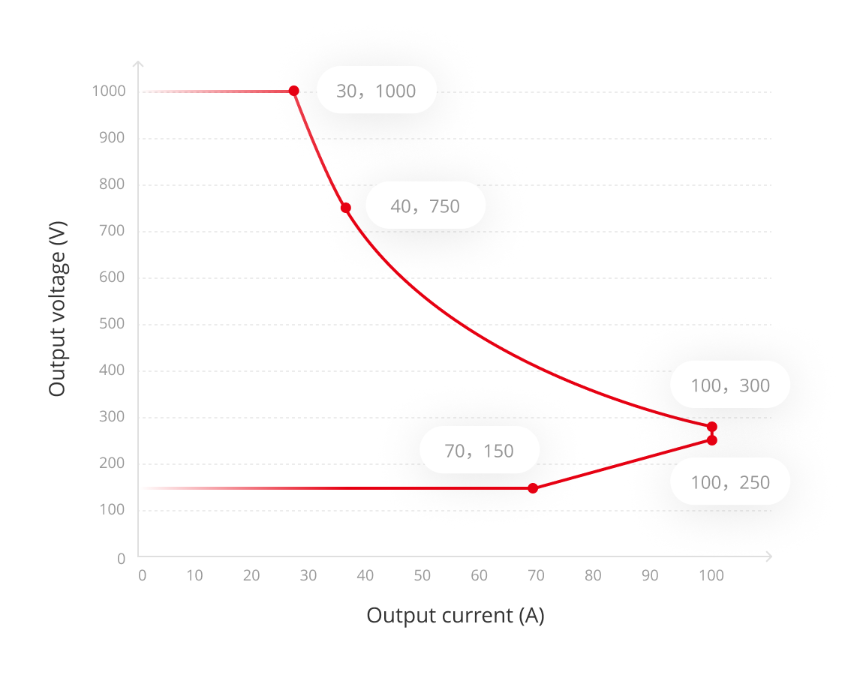

Module Output V-A Curve -

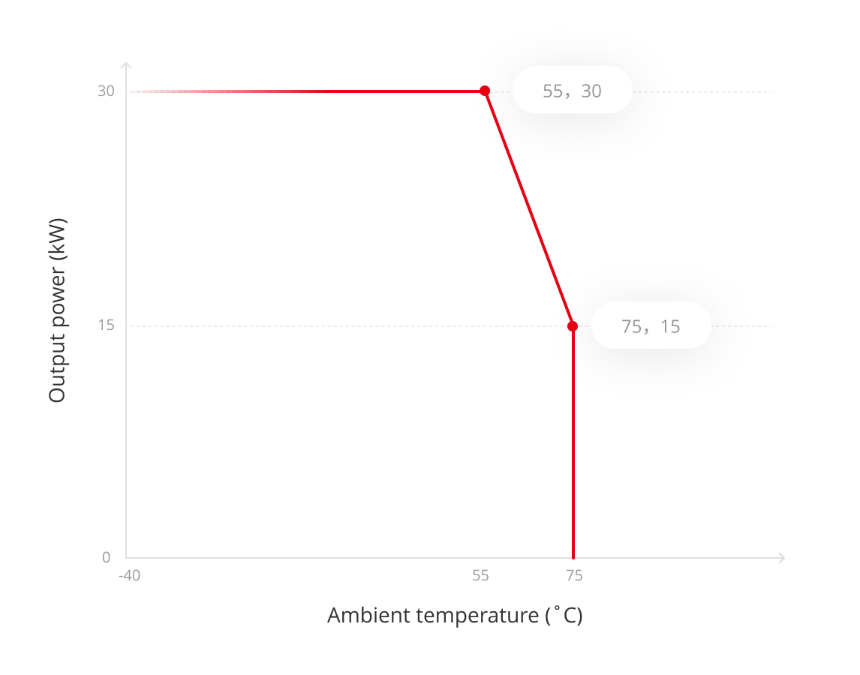

Output Power and Temperature Curve -

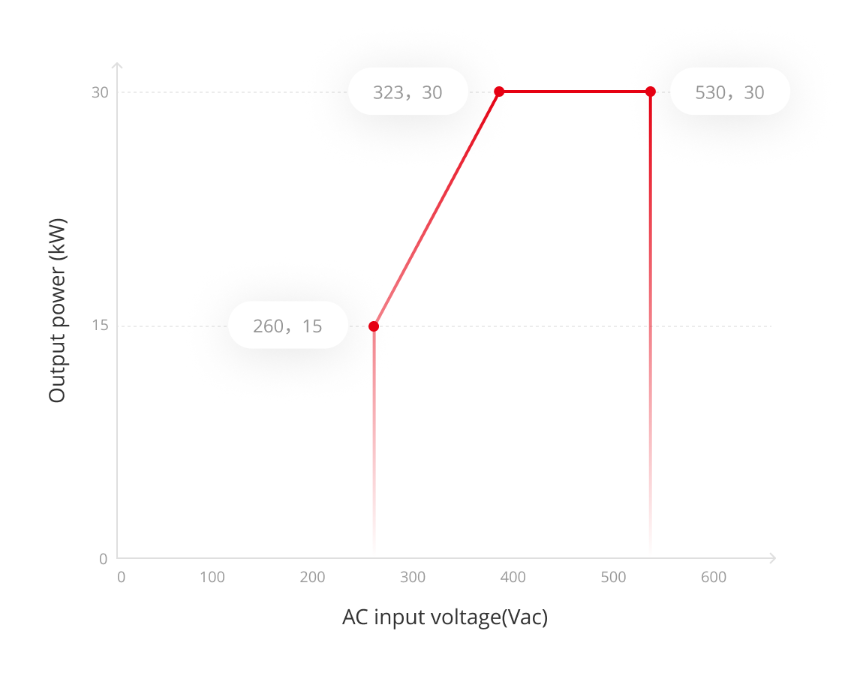

Output Power and AC Input Voltage Curve -

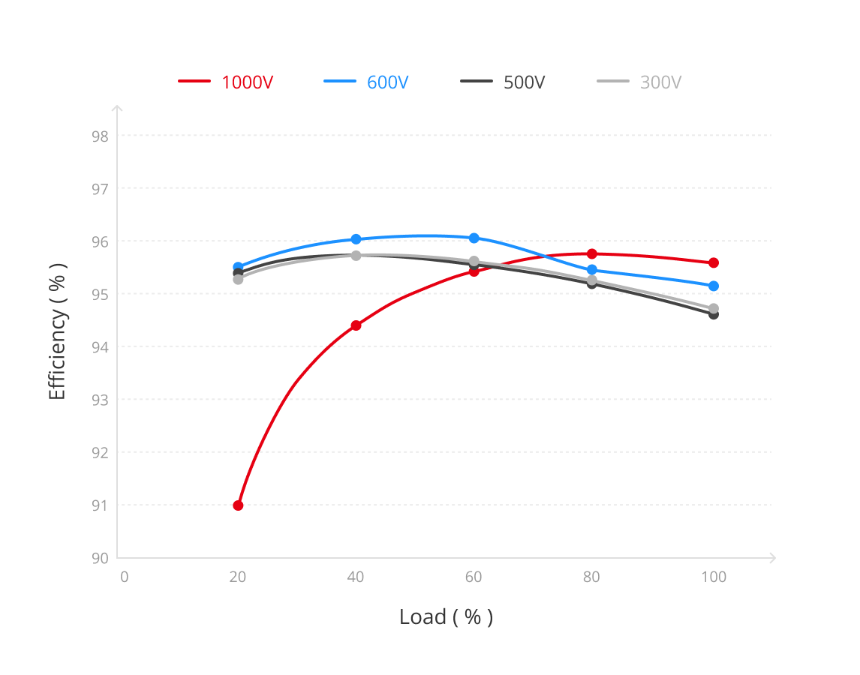

Efficiency Curve
|
Technical parameters |
EV3102-030K-HR1 (UL) |
|
AC input voltage range |
260~530Vac (3W+PE) |
|
Efficiency |
≥96% |
|
DC output voltage range |
150~1000Vdc |
|
Constant power output voltage range |
300~1000Vdc |
|
Output power |
30kW |
|
Max.output current |
100A |
|
Stand-by power consumption |
≤7.5W |
|
Noise level |
<65dB (Rated) |
|
Dimension (WxDxH) |
300x462x86mm |
|
Weight |
≤16.5kg |
|
EMC |
Class B |
|
Working temperature |
-40~75℃, derating output for temperature above 55℃ |
