Power Unit

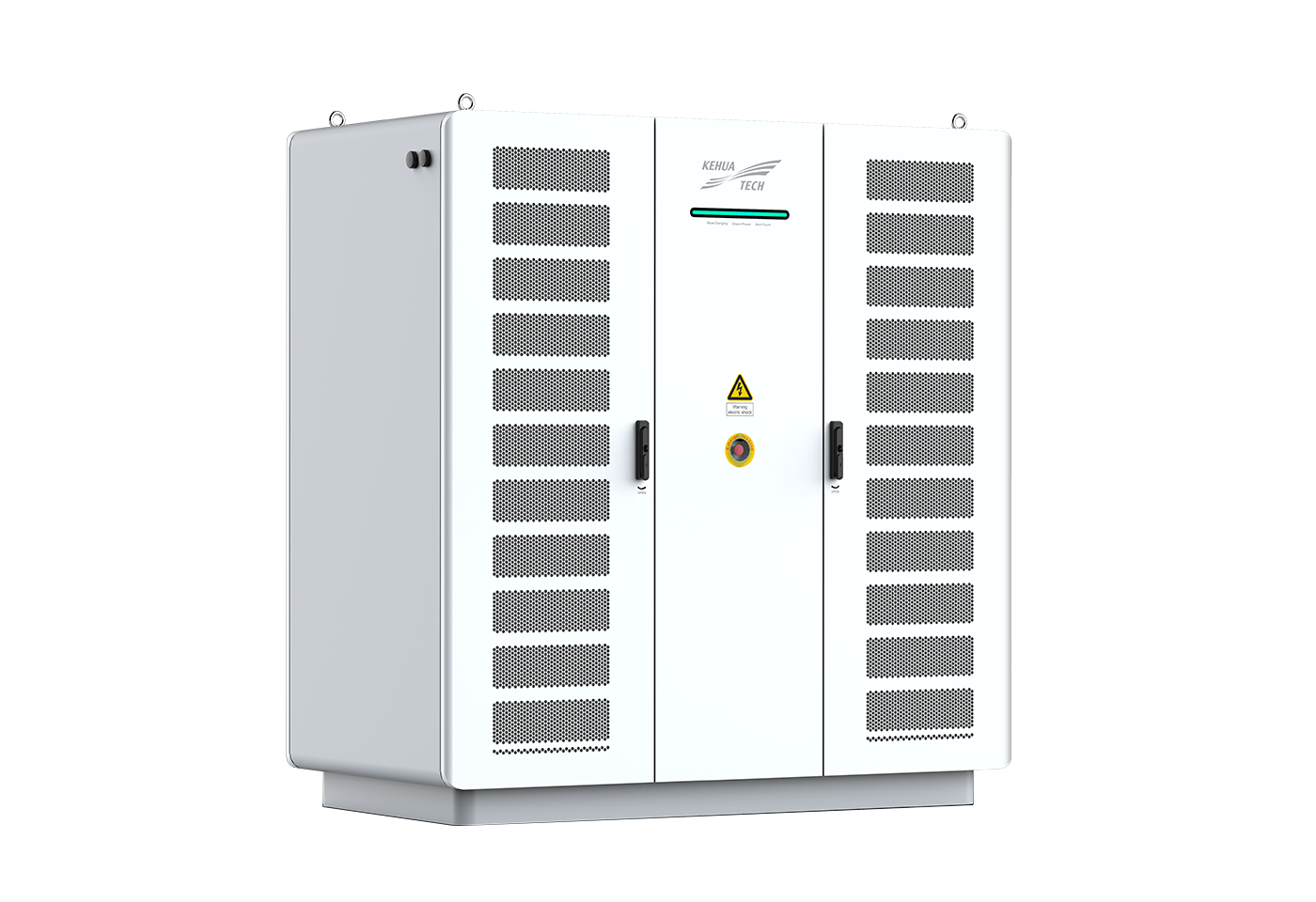

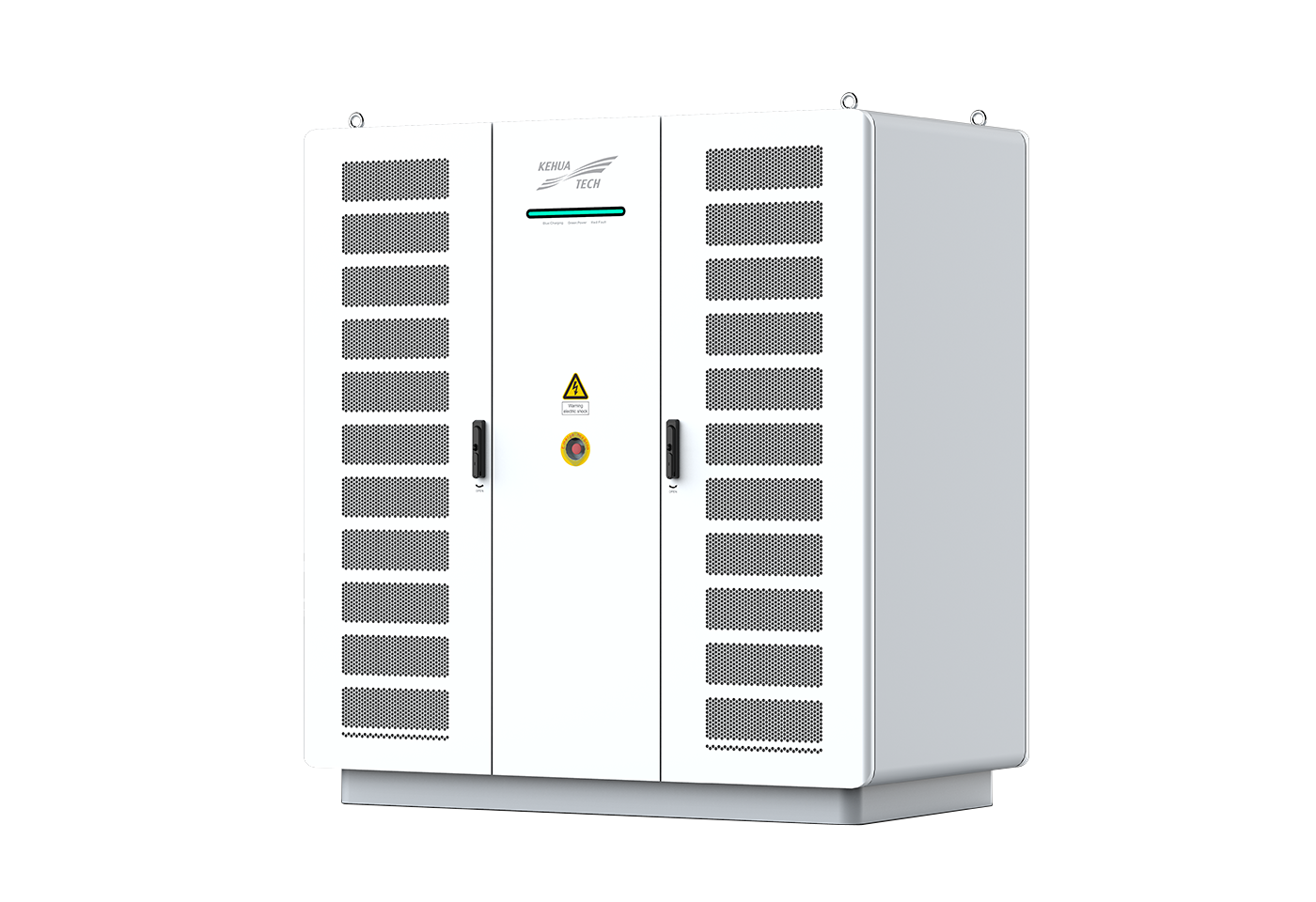

EVD-600SF/ EVD640SF/ EVD720SF/ EVD800SF power unit features with intelligent power optimization and dual-cabinet scalable technology (max 1.6MW), ensuring high reliability, efficiency, and megawatt-level charging capability. The product offers professional-grade solution for public , fleet charging and MCS infrastructures.
-
≥96.5% Peak Efficiency -
40+
Protections -
Efficiency Optimization -

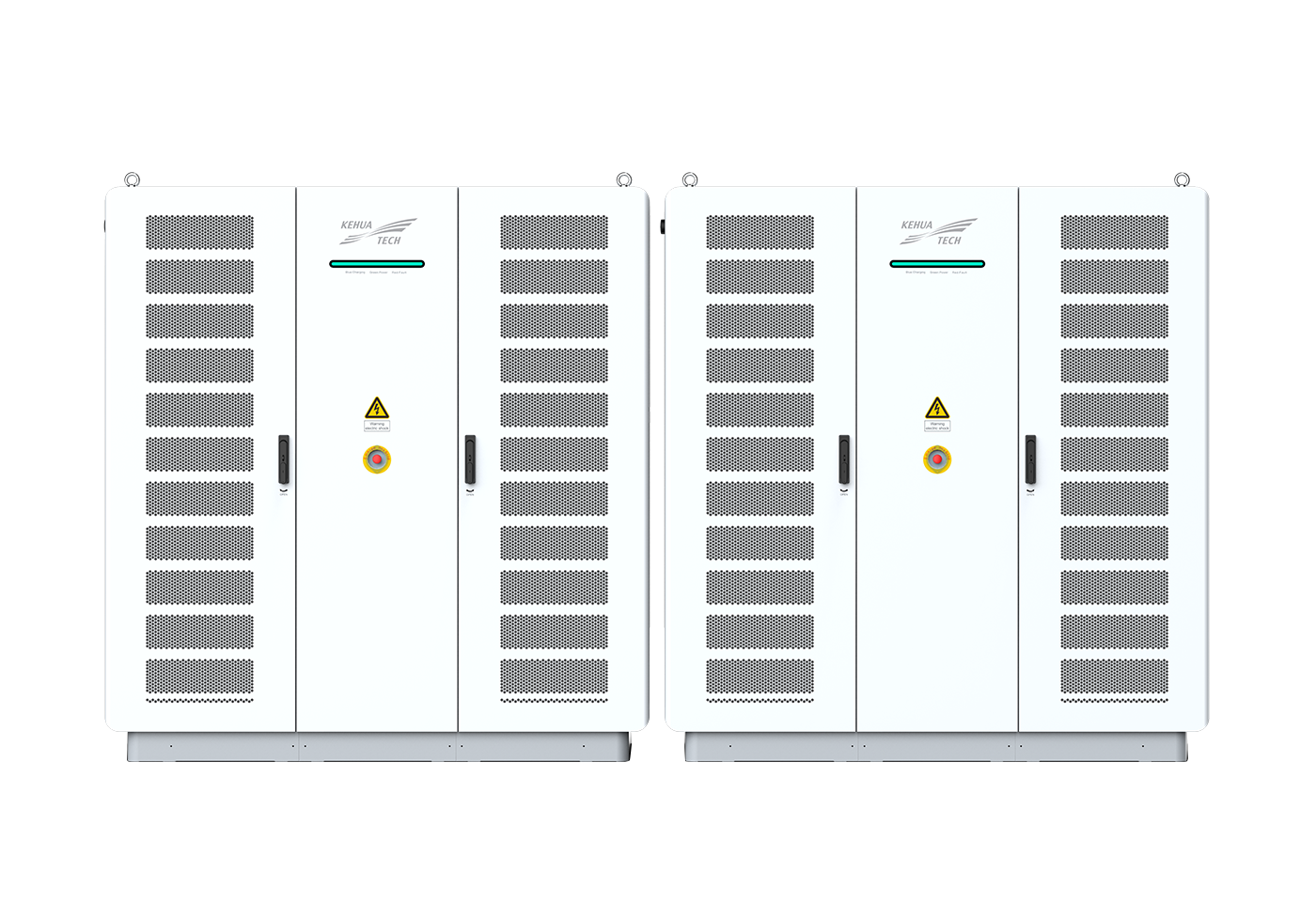

Dual-Cabinet Expansion
EVD-600SF/ EVD640SF/ EVD720SF/ EVD800SF power unit features with intelligent power optimization and dual-cabinet scalable technology (max 1.6MW), ensuring high reliability, efficiency, and megawatt-level charging capability. The product offers professional-grade solution for public , fleet charging and MCS infrastructures.
-
≥96.5% Peak Efficiency
-
40+ Protections
-
Efficiency Optimization
-
Dual-Cabinet Expansion
-
01More Efficient≥ 96.5% peak system efficiency using SiC high-efficiency modules
Innovative air duct design for noise controlling
Compatible with air&liquid-cooled dispensers to suit various EVs

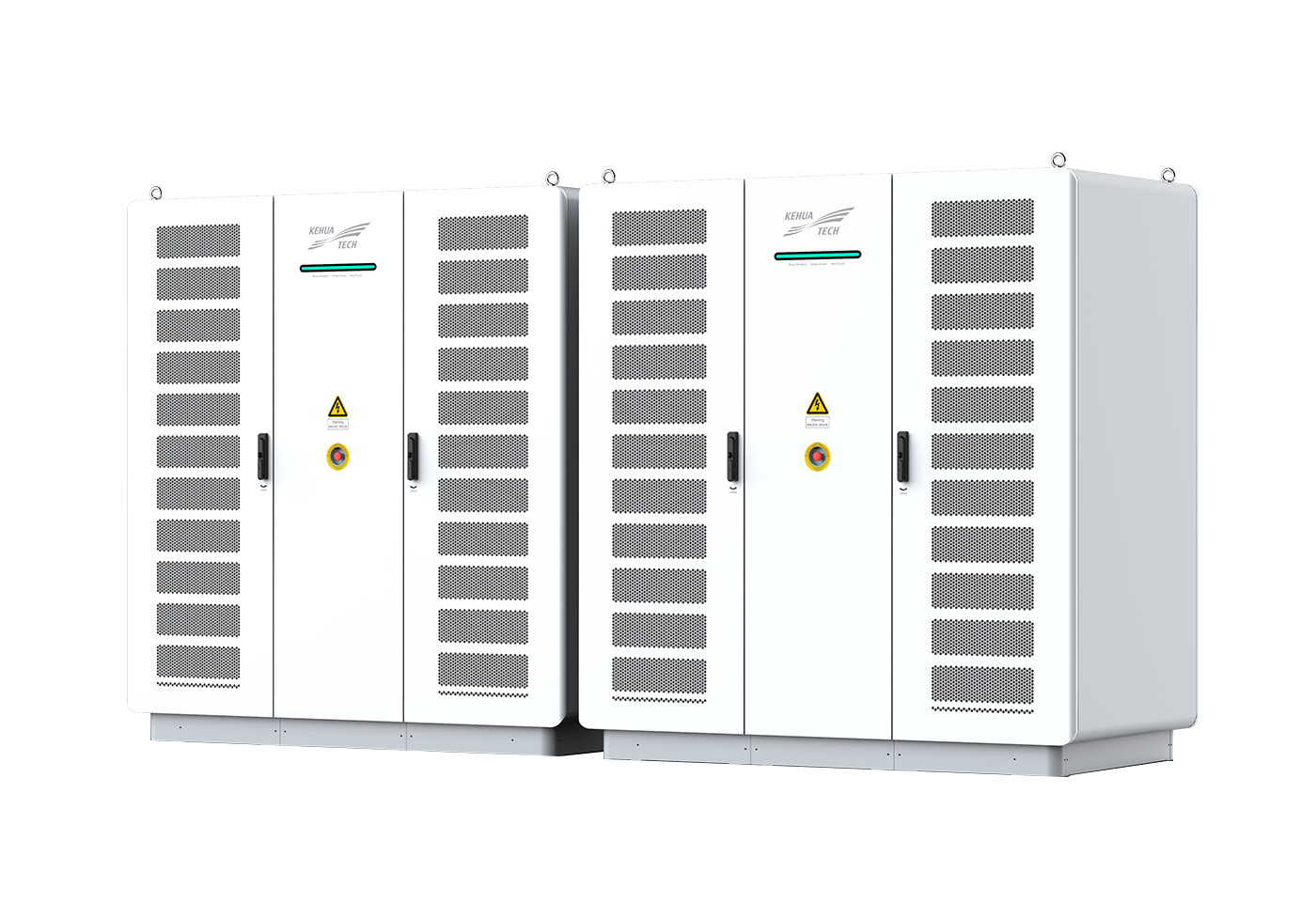

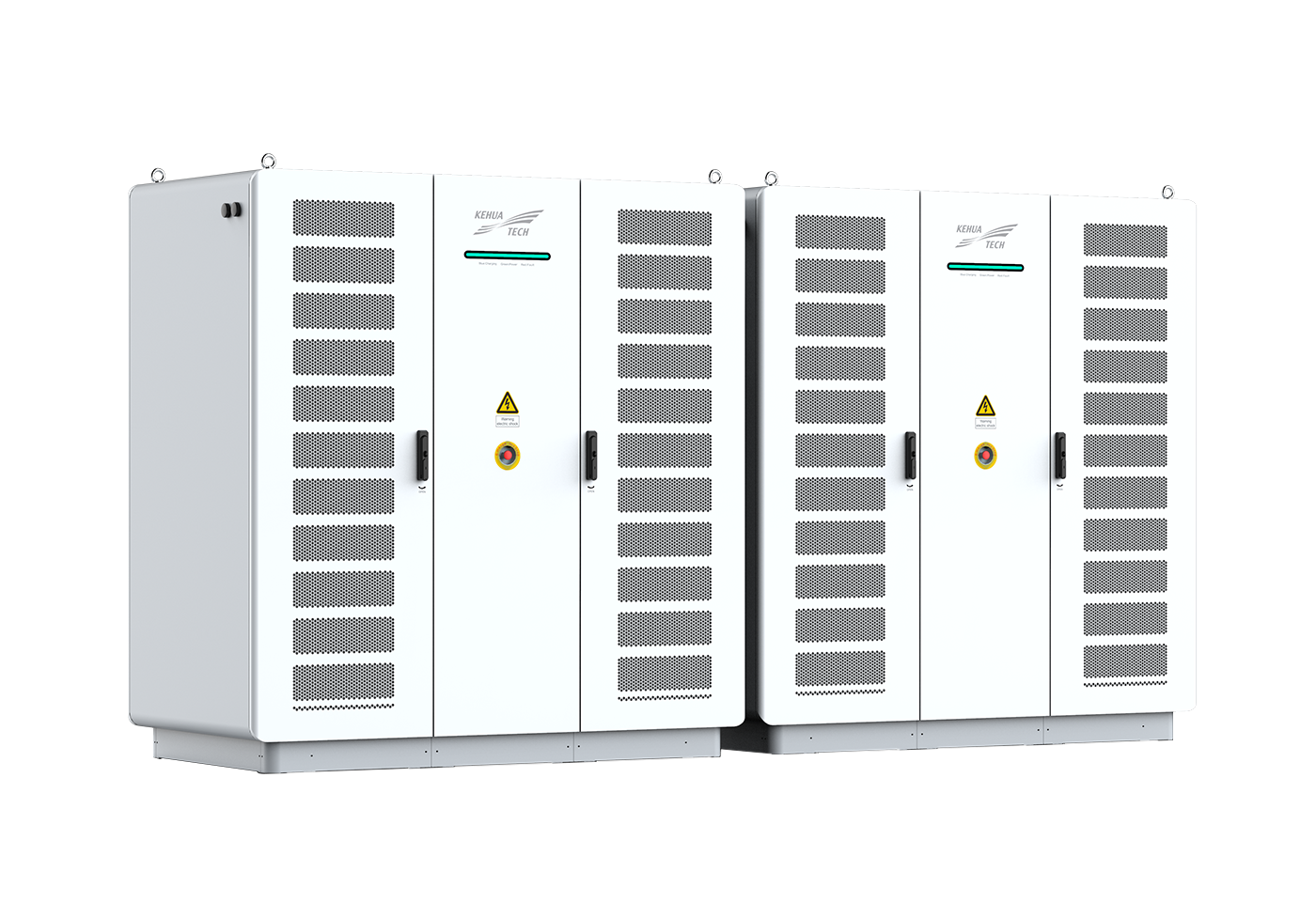

Dual cabinet expansion up to 1.2-1.6MW for higher power requirements
-
02More IntelligentSmart efficiency optimization reduces system energy loss
Smart power optimization maximizes operational efficiency
Single-module smart switching with up to 8 output circuits
Balanced charging module runtime extends overall system lifespan
-
03More ReliableIP55 protection & C4-H anti-corrosion for harsh environments
40+ protection and alarm functions for better overall safety
Module in-position detection enhances reliability
Advanced three-phase imbalance control for complex grid conditions
-
04Easy O&MSmart O&M management with online OTA upgrade
Supports Interactive data upload platform and fault logging
Slide-out dust filter to reduce maintenance time in 5 minutes
|
Technical parameters |
EVD-600SF/ EVD-640SF/ EVD-720SF/ EVD-800SF |
|
Nominal voltage |
3 / N / PE, 400 Vac (± 15 %) |
|
Nominal frequency |
50 Hz / 60 Hz (± 5%) |
|
Max. output power |
800kW |
|
Min. granularity of output power |
80kW |
|
Output voltage range |
150 Vdc - 1000 Vdc |
|
Max. number of output |
8 |
|
Max. efficiency |
≥96.5% |
|
Dimensions (W*D*H) |
1800 * 1000 * 1900 mm |
|
Enclosure rating |
IP55 |
|
Anti-corrosion degree |
C4-H |
|
Operating temperature |
-30° up to +55°C (with derating above +50°C) |
|
Operating altitude |
≤ 2000 m |
|
Noise emission |
≤ 65 dB (A) at 1 m distance / 25 °C, at full output power |
|
Cooling method |
Air-cooled |
