Distributed Charging System
The EVD-600SF, EVD-640SF, EVD-720SF, and EVD-800SF distributed charging systems feature intelligent power optimization and dual-cabinet scalable technology (up to 1.6 MW), delivering highly reliable, efficient, and megawatt-level charging for trucks, marine vessels, and fleet applications.
-
≥96.5% Peak Efficiency -
100+
Protections -
Efficiency Optimization -
Dual-Cabinet Expansion
The EVD-600SF, EVD-640SF, EVD-720SF, and EVD-800SF distributed charging systems feature intelligent power optimization and dual-cabinet scalable technology (up to 1.6 MW), delivering highly reliable, efficient, and megawatt-level charging for trucks, marine vessels, and fleet applications.
-
≥96.5% Peak Efficiency
-
100+ Protections
-
Efficiency Optimization
-
Dual-Cabinet Expansion
-
01More EfficientMax. 600 A ultra-fast charging
Peak efficiency up to 96.5%
Acoustic noise ≤ 65 dB with innovative airflow design
Full output power without derating up to +50°C
-
02More IntelligentScalable power from 600 to 800kW
Flexible configuration with air/liquid-cooled dispensers
Advanced efficiency & power-optimization algorithms

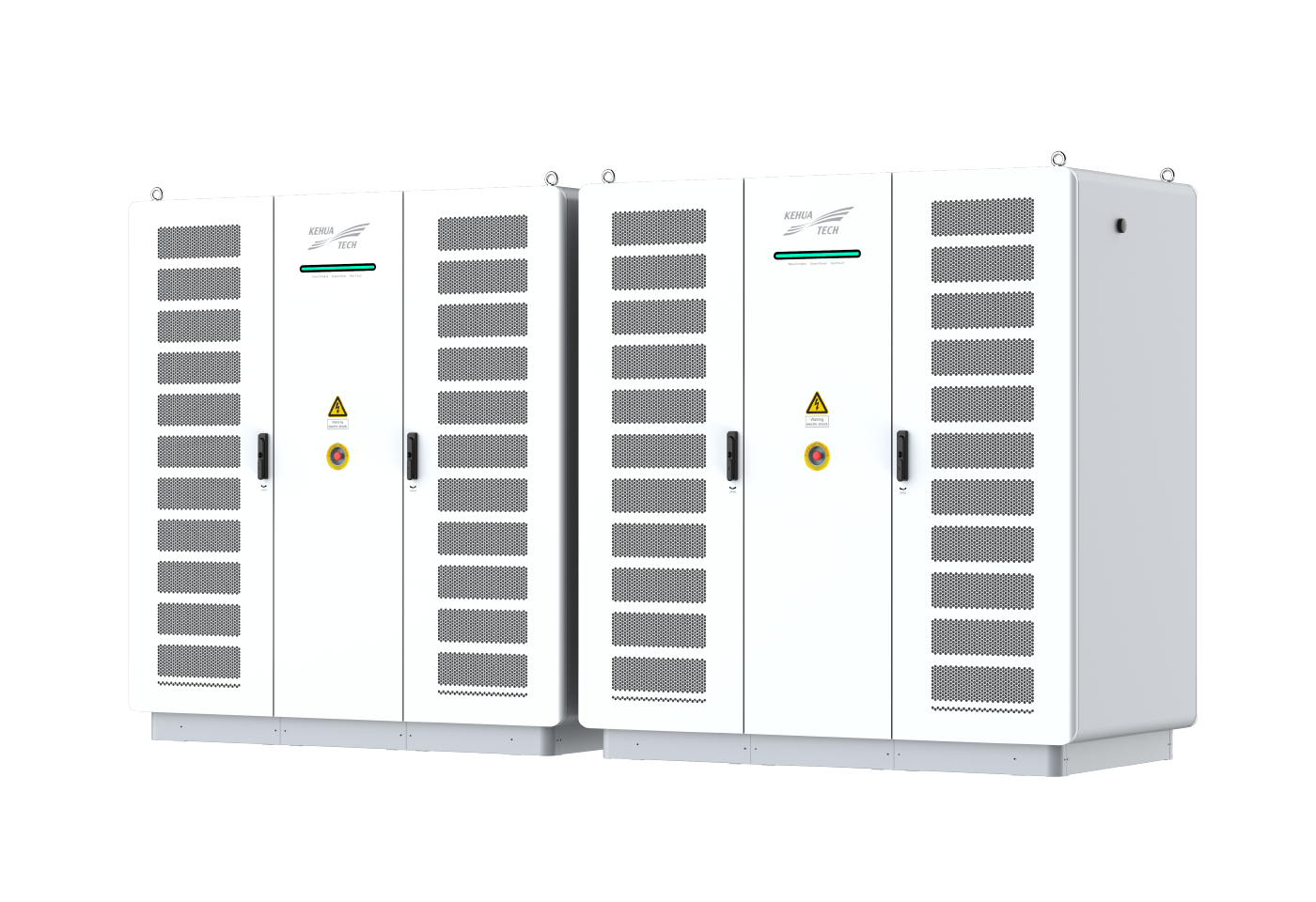

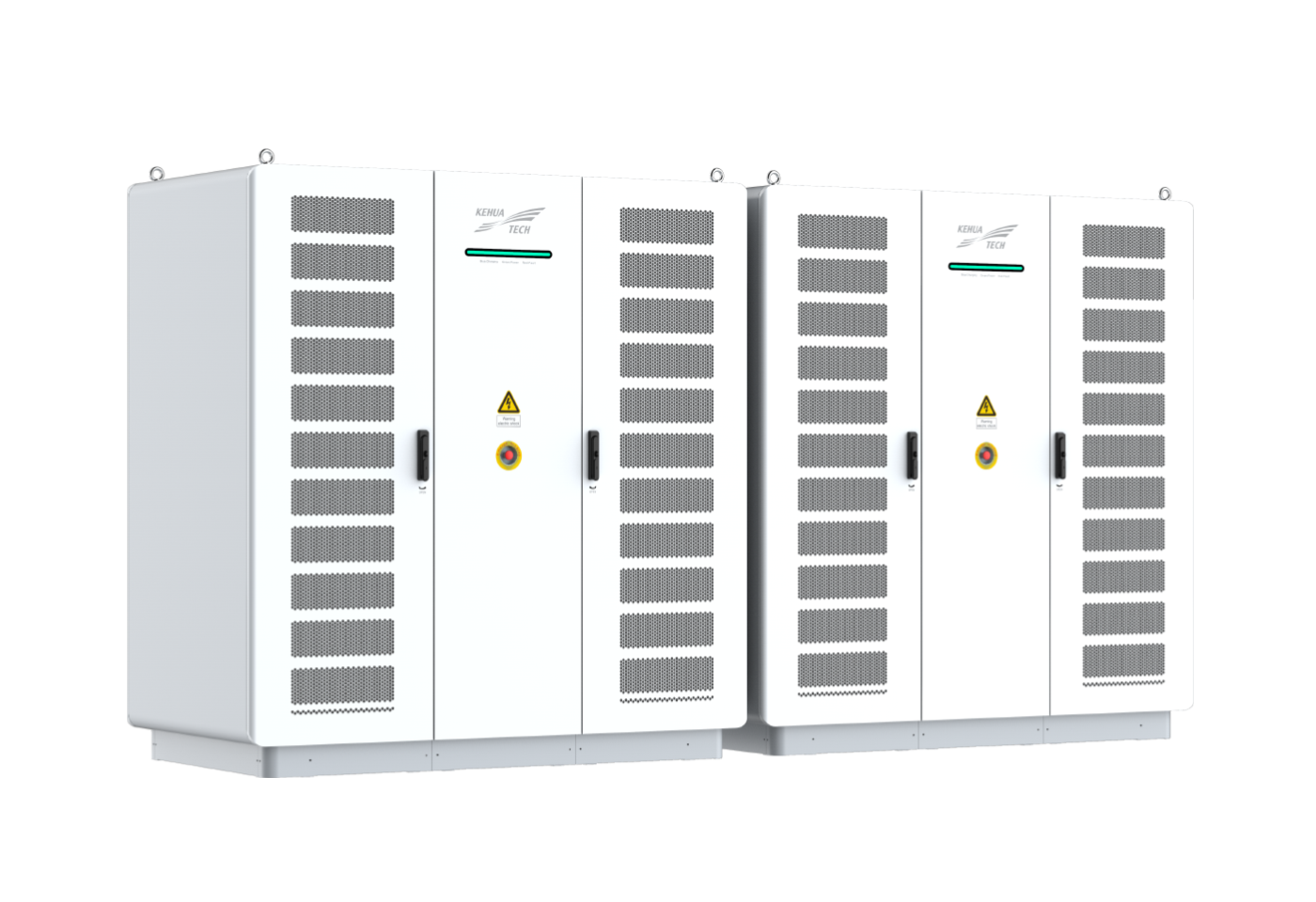

Dual-cabinet expansion up to 1.6MW
-
03More ReliableIP55 protection & C4-H anti-corrosion rating
100+ safety measures to ensure secure charging
Charging modules in-position detection
Charging module lifespan balancing algorithm
-
04More User-friendlyMultiple authentication methods
Swing-arm CMS delivers a seamless experience
Barrier-free design for easy access
Cloud platform and web-interface enable remote configuration, monitoring, diagnostics, and OTA updates
|
Technical parameters |
EVD-600SF/ EVD-640SF/ EVD-720SF/ EVD-800SF |
|
Max. output power |
800kW |
|
Output voltage range |
150 Vdc - 1000 Vdc |
|
Max. number of output |
8 |
|
Max. efficiency |
≥96.5% |
|
Dimensions (W*D*H) |
Power Unit: 1800 * 1000 * 1900 mm Dispenser: 600 mm * 400 mm * 2010 mm (with CMS) 600 mm * 400 mm * 1850 mm (without CMS) |
|
Enclosure rating |
IP55 |
|
Anti-corrosion degree |
C4-H |
|
Operating temperature |
-30°C up to +55°C (with derating above +50°C) |
|
Cable connection options |
Air-cooled dispenser: 250A/ 350A (boost 500A) Liquid-cooled dispenser: 500A (boost 600A) |
| Cable management system | 2 x self-retracting swing arm (optional) |
|
Authentication methods |
RFID-card / QR code / Auto-charge/ Credit card (optional) |
|
Communication to backend |
OCPP 1.6 J (Ready for OCPP 2.0.1) |
-
