PV+ESS+charging and inspection demonstration station

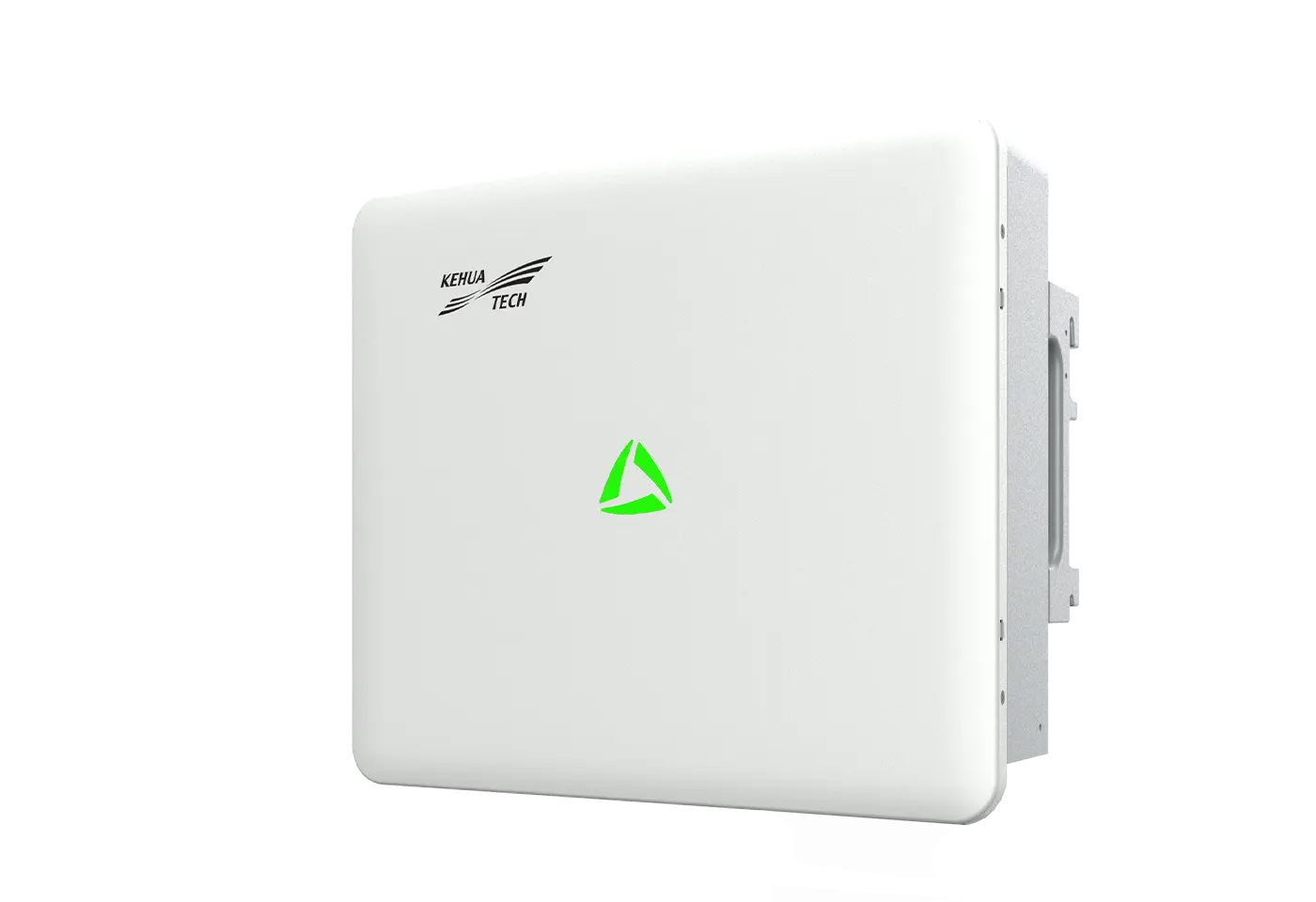

String PV Inverter
The three-phase string PV inverter adopts a three-way MPPT design, supports the connection of high current components. It has the advantages of small size, light weight, high efficiency, convenient operation and maintenance, and high reliability, meeting the application needs of various photovoltaic power generation scenarios
The three-phase string PV inverter adopts a three-way MPPT design, supports the connection of high current components. It has the advantages of small size, light weight, high efficiency, convenient operation and maintenance, and high reliability, meeting the application needs of various photovoltaic power generation scenarios
Technical parameters |
SPI30K-B X2 |
SPI33K-B X2 |
SPI36K-B X2 |
Max. PV input voltage(Vdc) |
1100 |
||
Rated input voltage(Vdc) |
600 |
||
No. of MPPTs |
3 |
||
No. of PV strings per MPPT |
2 / 2 / 2 |
||
MPPT voltage range (Vdc) |
180~1000 |
||
Max.current per MPPT(A) |
30×3 |
||
Rated AC output powe(kW) |
30 |
33 |
36 |
Rated AC output voltage (Vac) |
3 / N / PE,230 / 400 |
||
Rated output current(A) |
43.3 |
47.6 |
52.0 |
Max. efffciency |
98.6% |
||
Dimensions(W×D×H)mm |
550×480×200 |
||
Operating temperature(℃) |
-35~60 |
||
Compliance |
EN 62109-1/2, IEC 62109-1/2, EN IEC 61000-6-1/3, IEC 62116, IEC 61727, EN 50549-1, NC RfG, CEI 0-21, CEI 0-16 |
The first PV+ESS charging demonstration station
The world's first PV+ESS+V2G ultra-fast charging station
Demonstration deployment of PV+ESS and supercharging
Demonstration deployment of PV+ESS, charging and inspection
